ZHC492C MQTT Gateway Modbus Rs485 To Gsm Modem

Brand Name : IOTROUTER

Model Number : ZHC492C

Certification : CE FCC RoHs

Place of Origin : Sichuan, CHINA

MOQ : 1PCS

Price : USD65~69/PCS

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000PCS/MONTH

Delivery Time : 1 WEEK

Packaging Details : 270*180*55mm CARTON PACKAGE

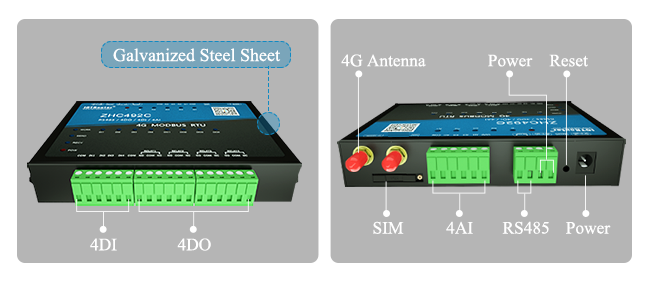

Material : Galvanized Steel Sheet

Interface : RS485/4DI/4DO/4AI

Protocol : MODBUS TCP/RTU MQTT JSON

Product Name : Digital Input Output MQTT Modem

Function : 8 Alarm Clock

Application : IOT Monitoring

Working Voltage : 12V

Module Type : 4G LTE

Customized : Support

Color : Black

OEM : Support

Contact Now

Digital Input Output MQTT Modem Modbus Gateway Rs485 To 4g GSM Controller

Manuals for MQTT Modem ZHC492C

ZHC492C_Datasheet.pdf

ZHC492C_USER MANUAL.pdf

ZHC492C_JSON_Manual.pdf

ZHC492C_Register address table.xlsx

Parameters of MQTT Modem

Serial Port
DO
Number of ports
RS485*1
Number of interfaces
1 Relay output
Standard
RS485: A, B
Standard
NO*1, COM*1
Baud rate
600~921600bps
Mechanical durability
10^7
Data bit
8, 9
Electrical durability
10^5
Stop bit
0.5, 1, 1.5, 2
Capacity
5A 250VAC 30VDC
Check Bit
NONE EVEN ODD
DI
Power Supply
Number of interfaces
2 Relay input
Voltage
9~36V
Standard
DI*2, COM*1
Current
60mA(aver) @9V
30mA(aver) @36V
Detection range (wet node)
5~50V->High0~2V->Low
EMC
AI
ESD
IEC61000-4-2, Level 4
Number of Interfaces
1 Analog input
Surge
IEC61000-4-2, Level 3
Standard
AI*1, G*1
Group pulse
IEC61000-4-2, Level 3
Scope of test
4~20mA

  • Introduction​ of MQTT Modem

ZHC492C support 4-channel dry (wet) node detection, 4-channel relay (COM, NO, NC) Output, 4 channel analog quantity (current 4~20mA) detection, 1 channel RS485 transparent network IO products, compatible with Modbus RTU/TCP protocol. With remote control as the core function, it is highly easy to use, users can easily and quickly integrate into their own systems to realize remote and local control based on LTE, RS485.

  • Function​ of MQTT Modem

Client can send Modbus commands to ZHC492C through the network and serial port to read and write DO status.
DO of ZHC492C support active reporting, restarting the holding relay status, output holding time, timing flip.

ZHC492C can realize long-distance data transmission of one to one, one to many and many to many.

Customers do not need to develop the server, but configure the cloud networking function of the device.

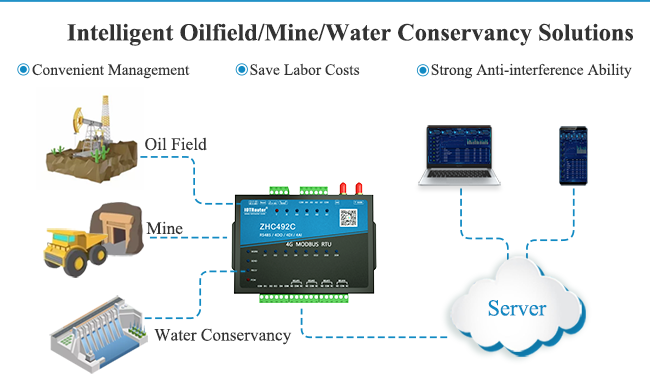

Application of MQTT Modem

1. Automatic soil moisture monitoring
Establish a soil information system to master the overall quantity, quality and spatial distribution of soil resources.


2. Automatic weather monitoring
Improve the accuracy of weather forecasts to provide a scientific basis for governments at all levels to prevent and reduce disasters.

ZHC492C MQTT Gateway Modbus Rs485 To Gsm Modem

ZHC492C MQTT Gateway Modbus Rs485 To Gsm Modem

ZHC492C MQTT Gateway Modbus Rs485 To Gsm Modem

ZHC492C MQTT Gateway Modbus Rs485 To Gsm Modem

ZHC492C MQTT Gateway Modbus Rs485 To Gsm Modem

ZHC492C MQTT Gateway Modbus Rs485 To Gsm Modem

ZHC492C MQTT Gateway Modbus Rs485 To Gsm Modem

ZHC492C MQTT Gateway Modbus Rs485 To Gsm Modem

ZHC492C MQTT Gateway Modbus Rs485 To Gsm Modem

ZHC492C

RS485 Modbus

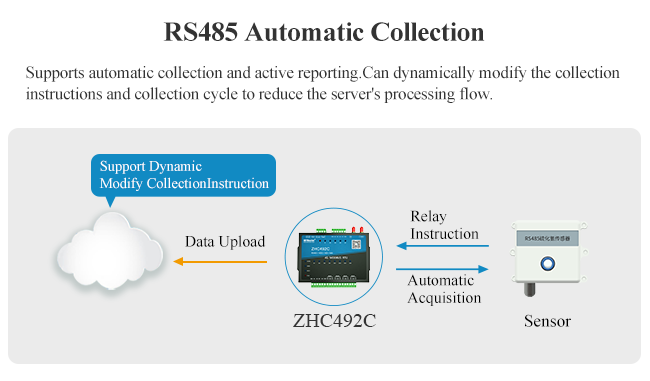

RS485 Automatic Acquisition

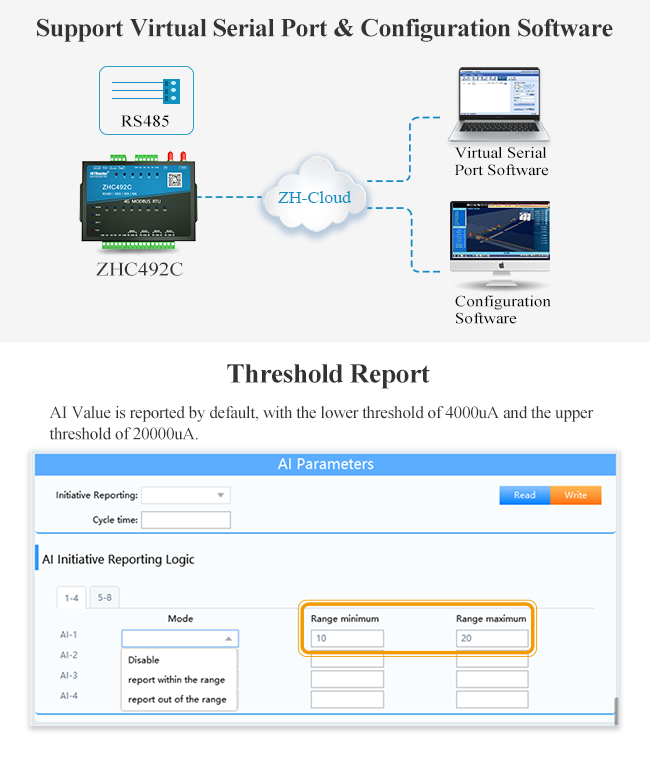

Virtual Serial Port

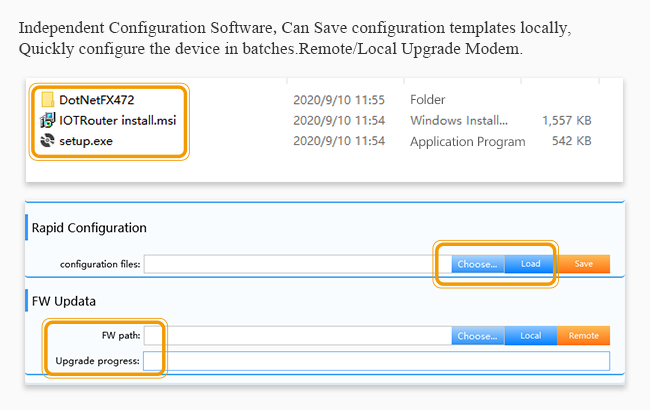

Connfiguration Software

Threshold Report

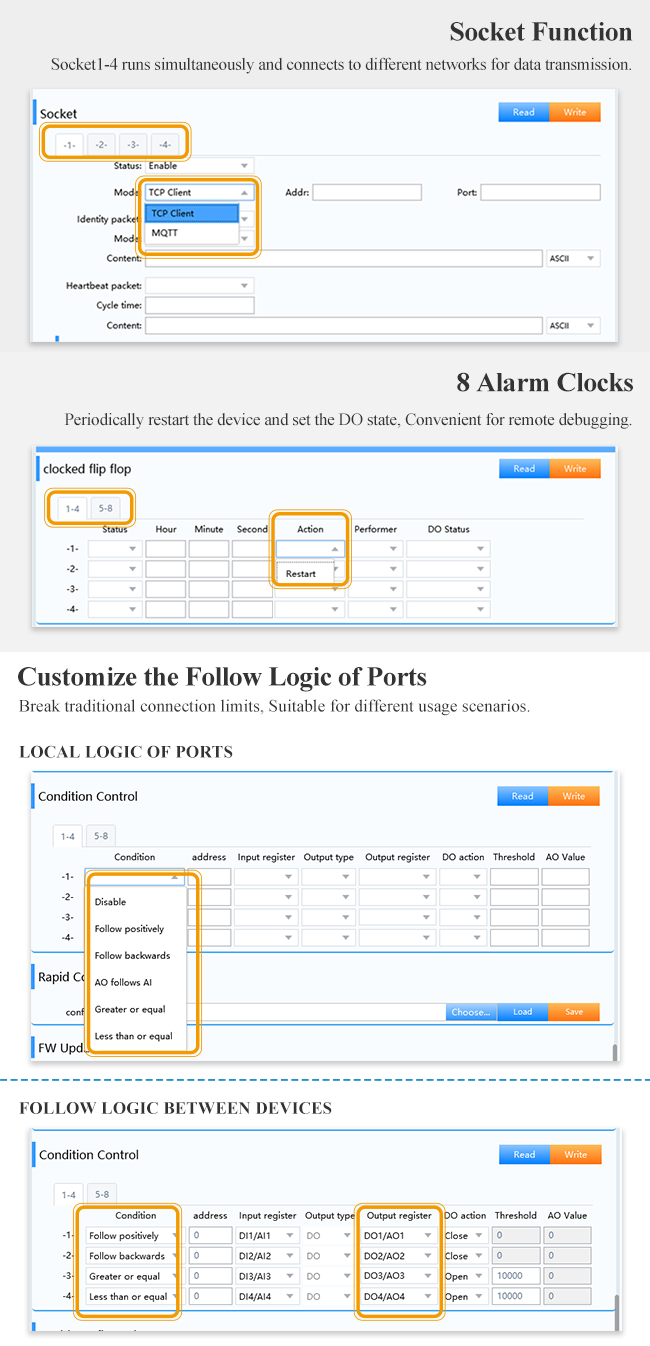

4 Channel Socket

8 Alarm Clocks

Customize the Follow Logic of Ports

JSON/Modbus RTU/TCP
